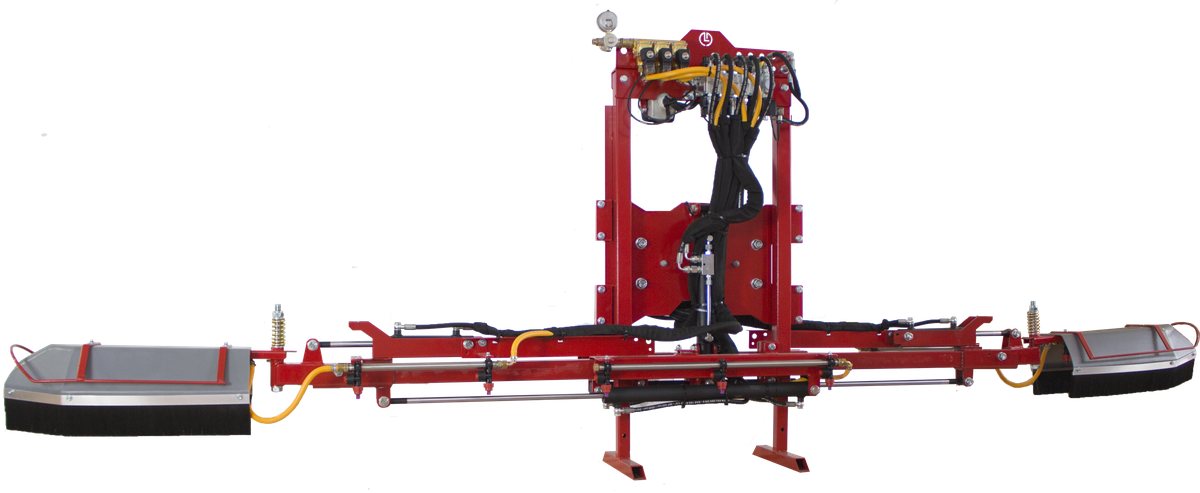

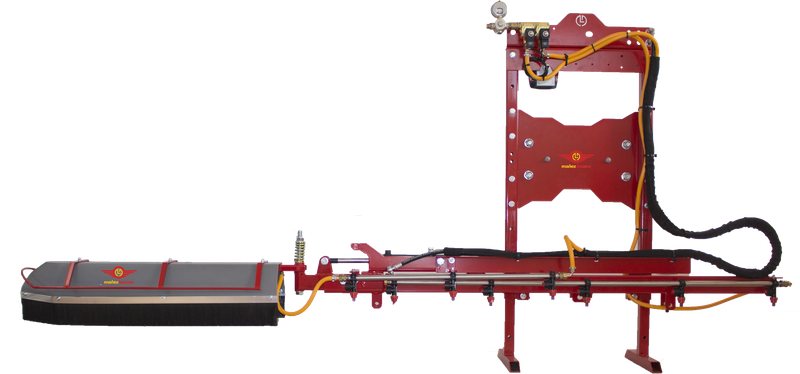

Front-mounted hydraulic inter-row bar

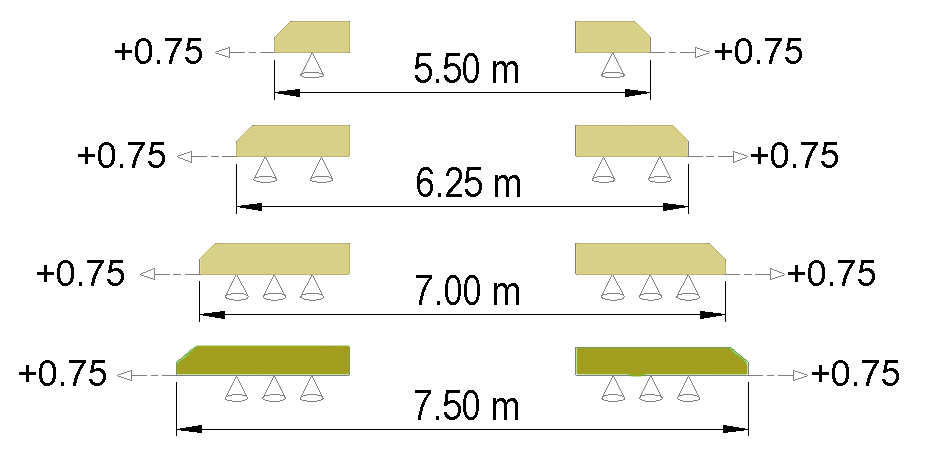

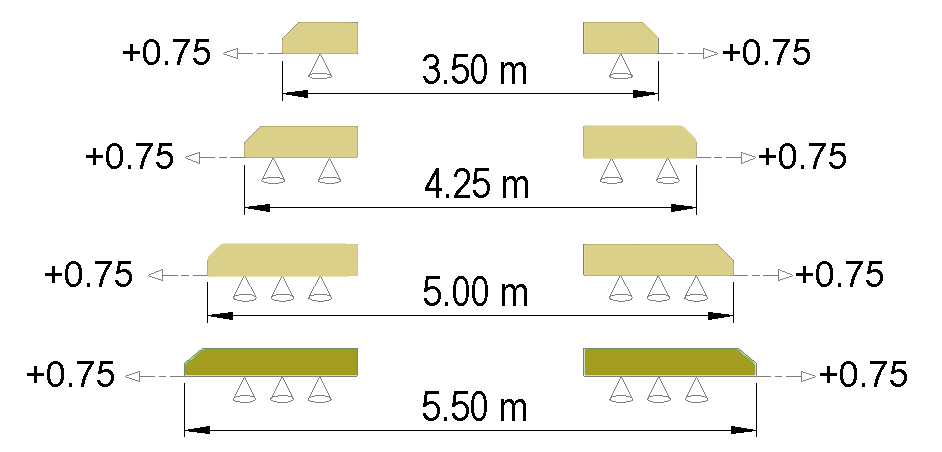

Coverage: from 3.75 to 6.5 metres for XL models and from 5 to 9 metres for XXL models
Particularly suitable for large farms.
Thanks to our range of herbicide booms, it is possible to apply the product correctly, minimising consumption, protecting the environment and ensuring 100% effective treatment.
- Cold-rolled structural tubular chassis
- Fire-painted structure
- Double-acting pistons
- Reinforced polyethylene screens with a spring mechanism and a special folding system for transport
- Multi-position adjustment of the horizontal arms using pistons or manually
- Screen protectors to prevent screen cracks
- Support legs
- Stainless steel feed tubes with a ½” thread and Ø 7 mm holes spaced 370 or 500 mm apart
- Bar supplied with: nozzles and nozzle holders, hydraulic and pneumatic connection hoses

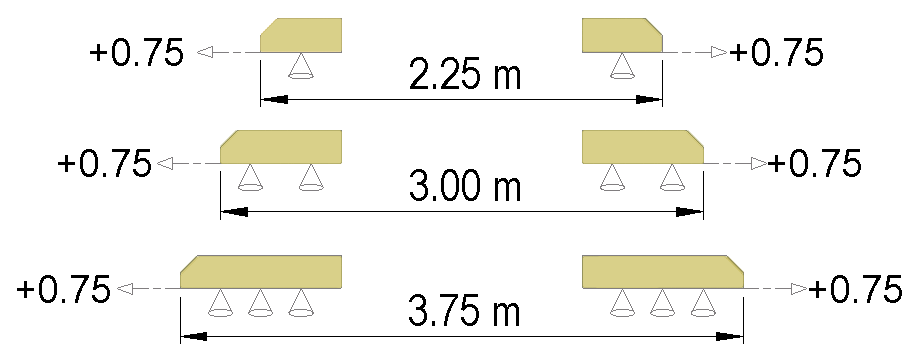

XL closed bar

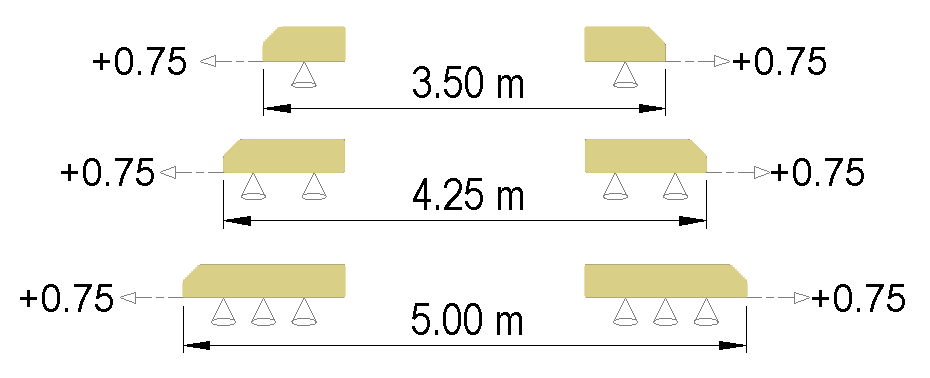

XL open bar
XL closed bar
XL open bar
OPTIONAL EQUIPMENT
Hydraulic kit for 3 movements
ON-OFF electric control kit
2 sections
Combined electric control:
5 movements +
3 outputs
Pressure-reducing valve with pressure gauge
Anti-drift
protection kit
Anti-drift booms with 1, 2 or 3 nozzles + angled nozzle holder
Total coverage
supplement
