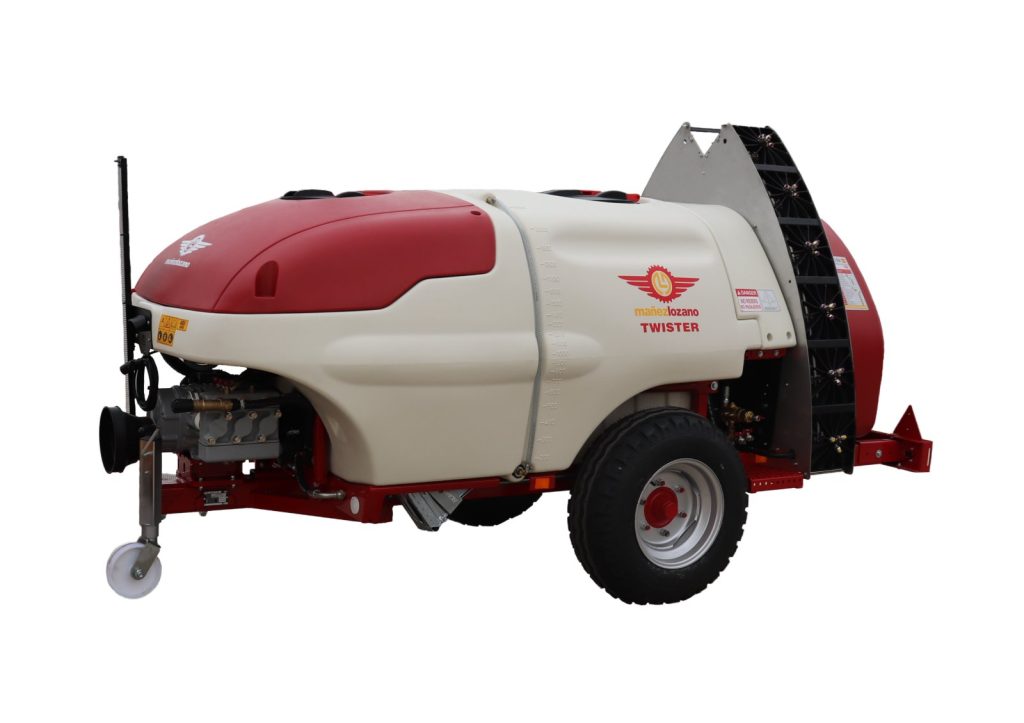

Twister FR S6 trailed sprayer
HP requirement: from 55 HP.
Available width: from 157 to 210 cm.
Tank Capacity: 2000, 3000 y 4000 litres

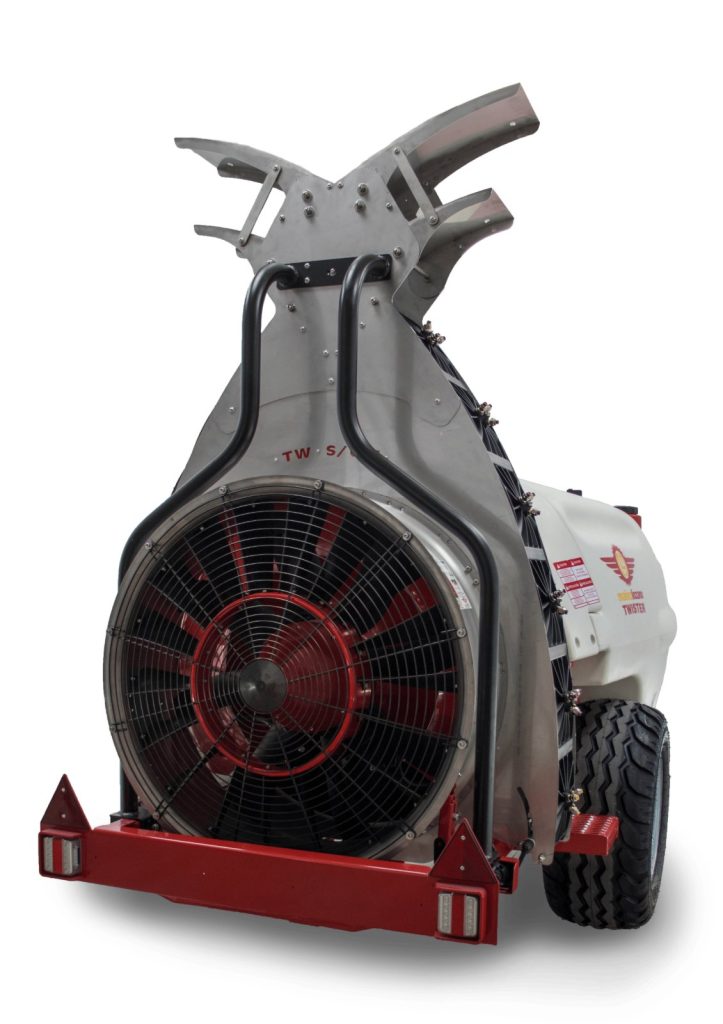

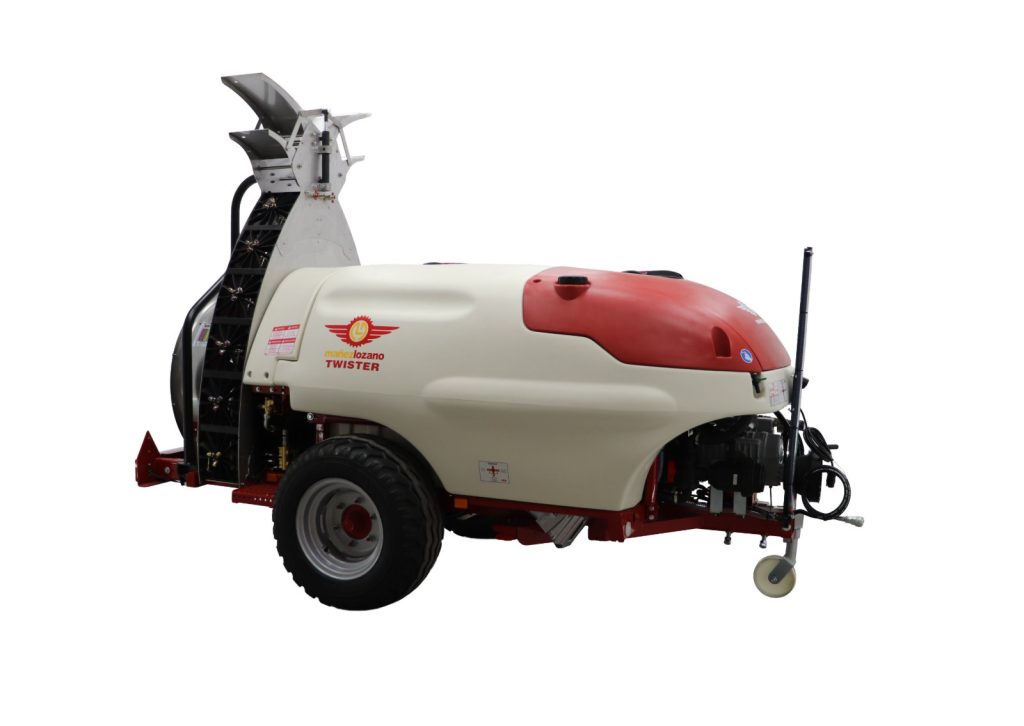

Twister S6 trailed sprayer.
Trailed sprayer for citrus, fruit, almond and super-intensive olive groves, with taller trees, higher cup density, and wider inter-row width
Fruit trees
Almond trees
Citrus
Olive Trees
Walnut Trees
- Cold rerolled structural tube frame
- Telescopic drawbar
- Stirrup for easy access to the tank filler neck
- Jockey wheel support
- High quality polyethylene main tank with uniform thickness and front and side level indicator.
- Hand-washing and circuit-washing tank
- Multiple filtering system
- Product Mixer
- Cleaning robot inside the main tank
- Hydraulic Agitator
- High pressure piston pump with reducer shaft
- Electric ON/OFF controls
- Internal transmission category 4 SAE G7
- External transmission and connection to CV tractor category 4 SAE G7
Technical specifications

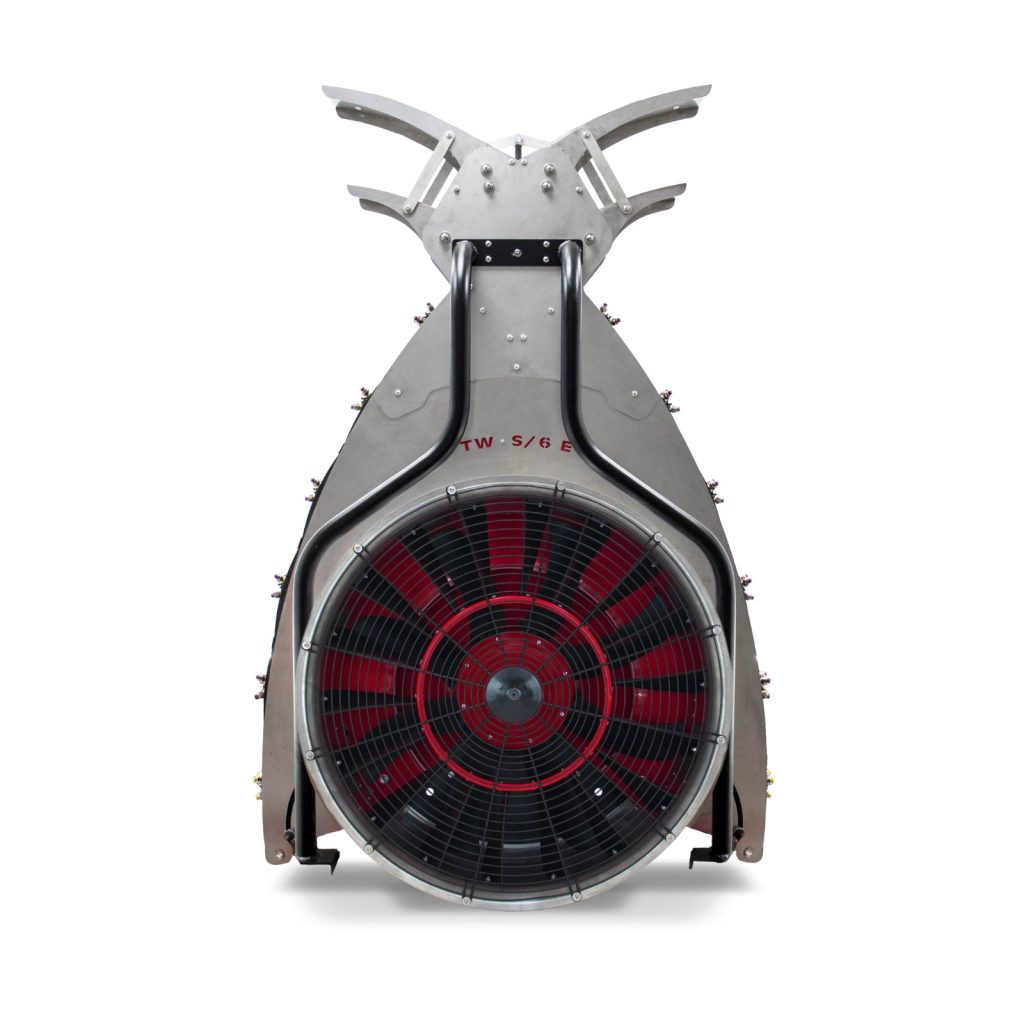

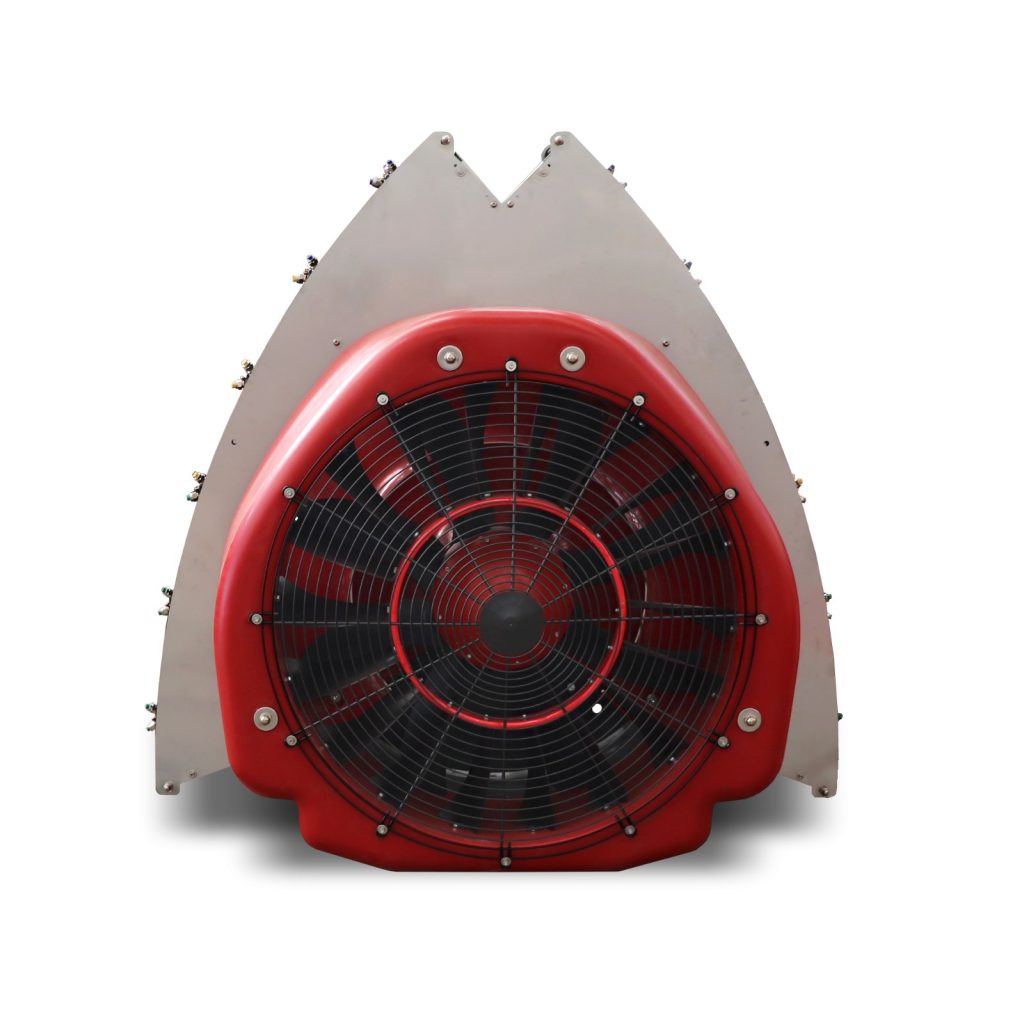

- Polyethylene fan housing
- Stainless Steel defl ector with 18 blades to ensure even distribution on both sides of the air volume
- Three-channel air duct system which increases production, preventing rapid air produced at the top of the rotor colliding with the slow air generated in the central part
- Two-speed and neutral gearbox transmission
- Rotor with aluminium core and steel jacket to prevent wear due to friction with the clutch
- Eight adjustable blades with curved design that reduces power absorption and lowers the noise level and fuel consumption.
- Aluminium clutch linings which enable smooth and progressive start up
- Stainless steel supply pipes
- Triple anti-drip nozzle holders with spray tip nozzles
- Twister spiral system which generates spray at the air flow outlet, allowing us to maintain the vegetation of the moving plant, preventing the shielding effect that prevents the air flow and liquid flow from entering the inside of the tree. The system prevents the excess concentrated liquid at the same point from draining and spilling onto the ground and polluting the environment.
Air system characteristics
PUMP SUPER REDUCTORA ML-A1
Pump specially designed for atomizers. This pump is mounted with a reducer and a through shaft : the through shaft allows us to directly transmit the revolutions of the tractor joint shaft to the air system, and the reducer decreases the revolutions of the pump crankshaft , lowering the power absorption and, therefore, both the fuel consumption and wear of the pump.
PUMP SUPER DIRECTA ML-A
Pump specially designed for atomizers.
PUMP ESPECIAL DIRECTA ML-D
Pump specially designed for atomizers.
ELECTRIC CONTROL ON-OFF
Control with double switch to increase or decrease pressure (optional) and two switches to activate or deactivate the left and right solenoid valves.
TRONIC VOLUMETRIC CONTROL
The Tronic volumetric control is able to apply the l/Ha required for each treatment with respect to the forward speed.
3.2 “ (320X240) TFT colour screen which allows you to view all functions simultaneously
Identifi cation of electrical faults with on-screen alarms
Agenda that allows us to work with 50 diff erent fi elds and 15 diff erent treatments.

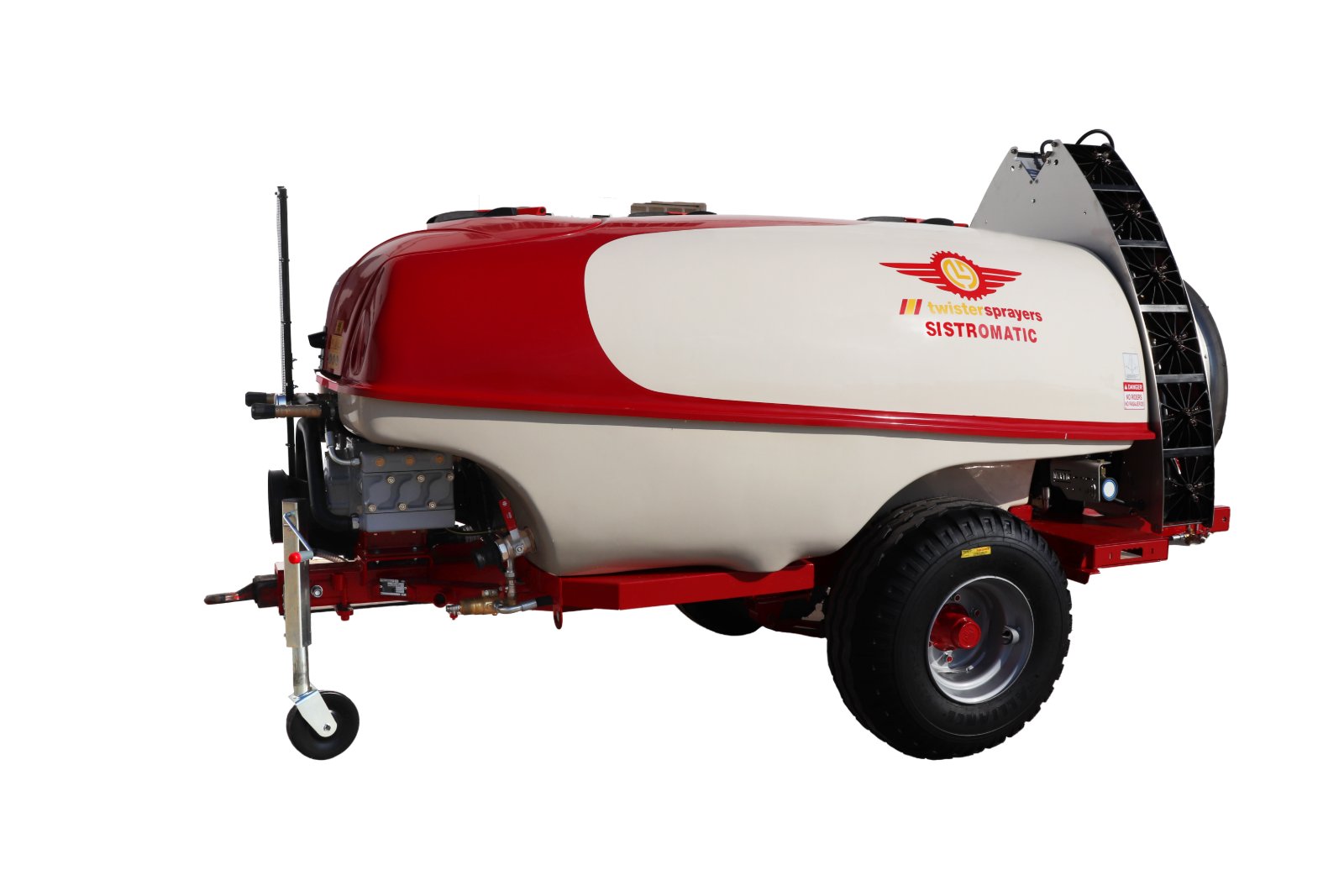

SISTROMÁTIC CONTROL
The Sistromatic control includes ultrasonic sensors for detecting trees
Real-time plant and tree counters
Control of input and output delays
3.2 “ (320×240) TFT colour screen with backlit keyboard
Identifi cation of electrical faults with on-screen alarms
OPTIONAL EQUIPMENT
Drawbar to tractor coupling
Drawbar to the tractor arms
Anti-leaf
flap
Back
box
Hydraulic
brakes
Wheels
340/55-16”
Light
installation
Electrical valve pressure regulation kit
Tronic Volumetric control kit
Sistromatic control kit without flowmeter
Anti-leaf
grate
