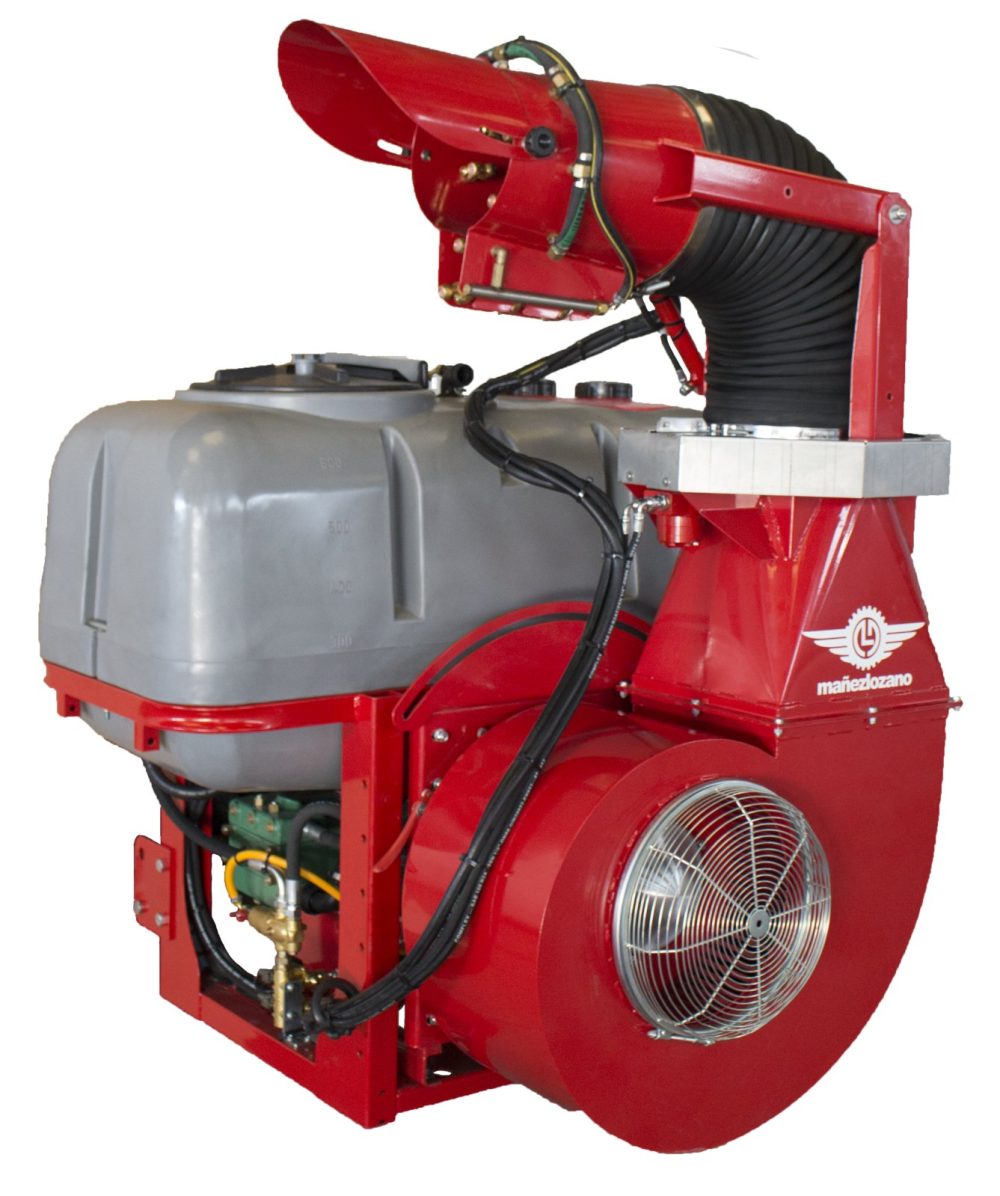

IMG_0561

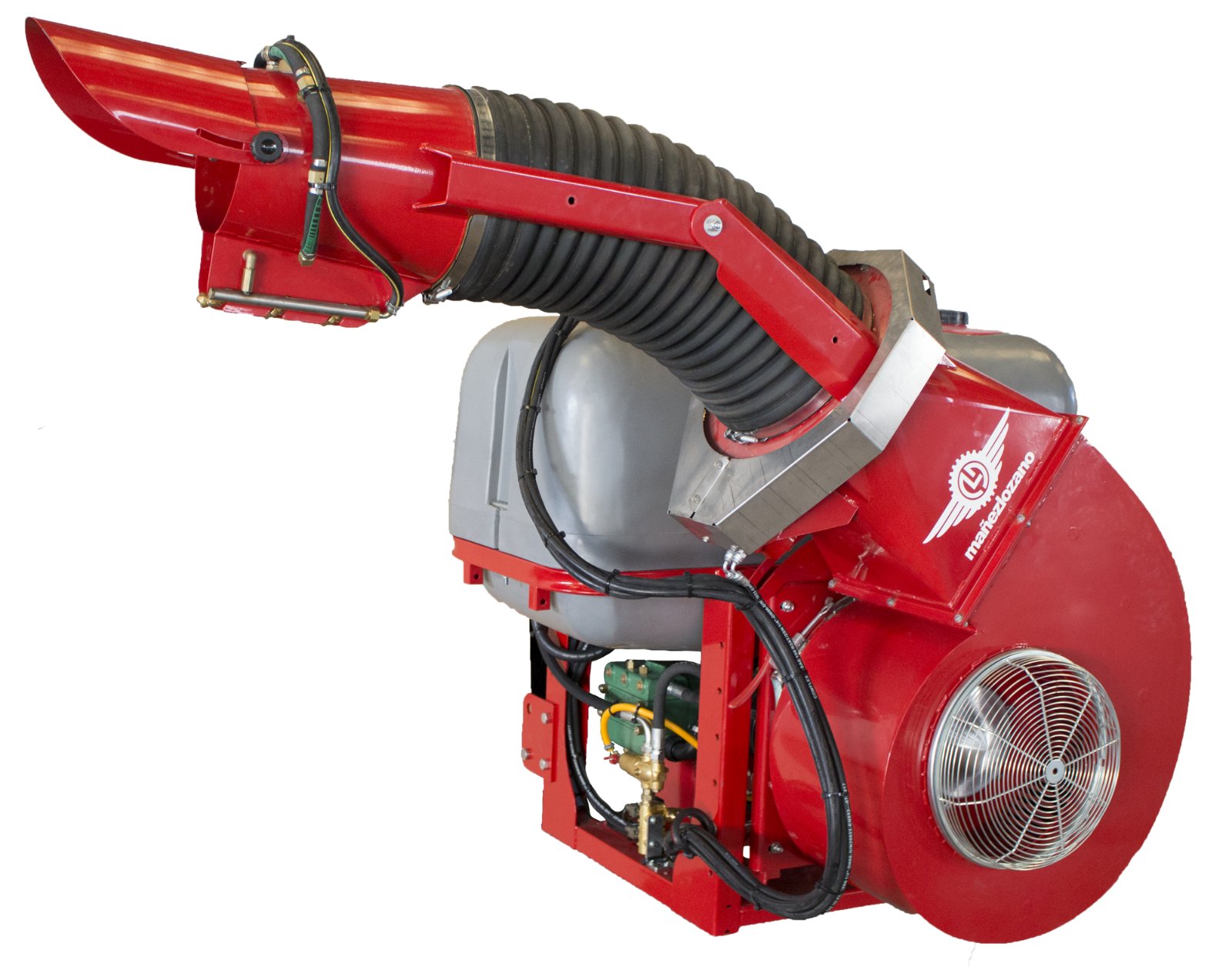

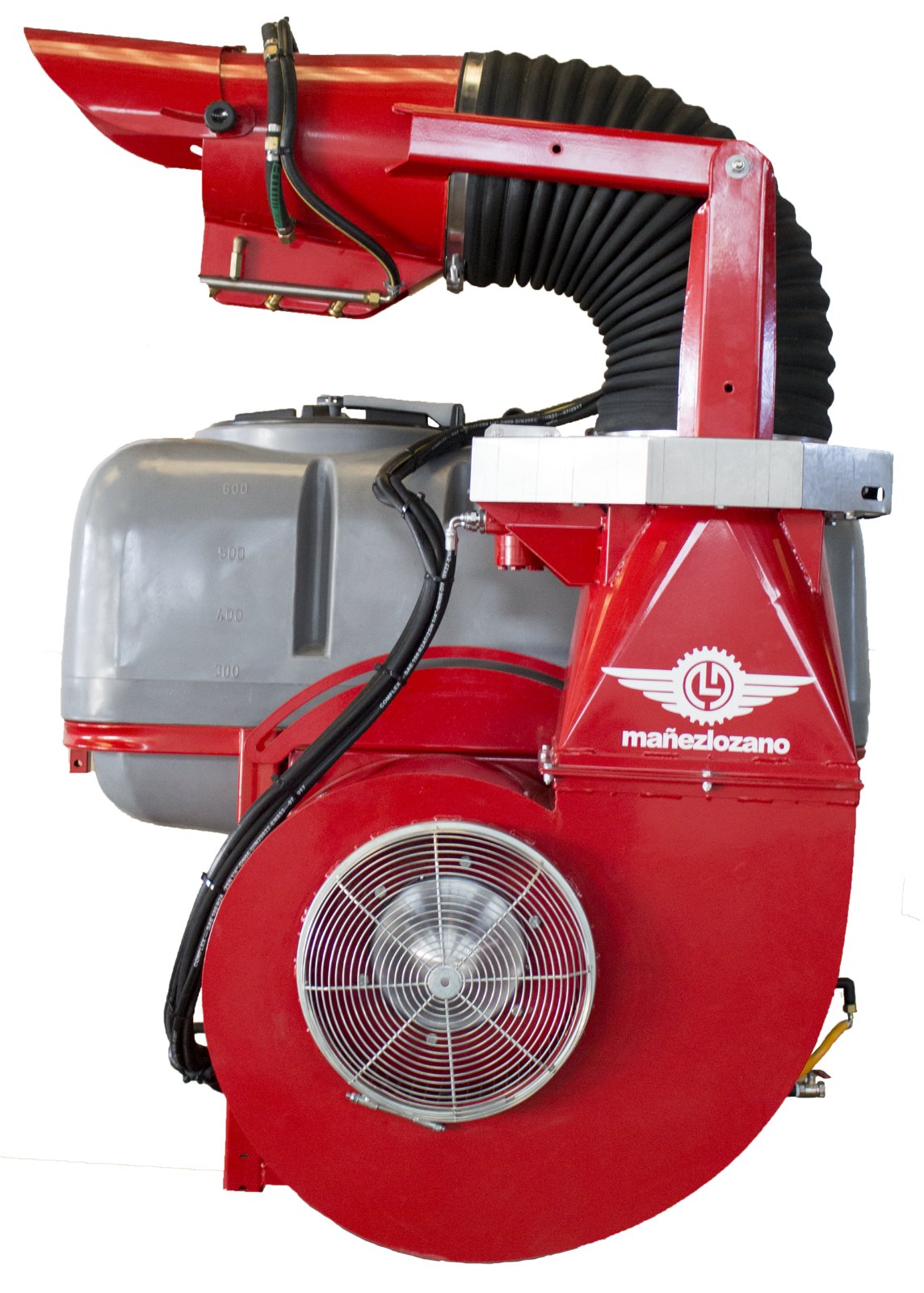

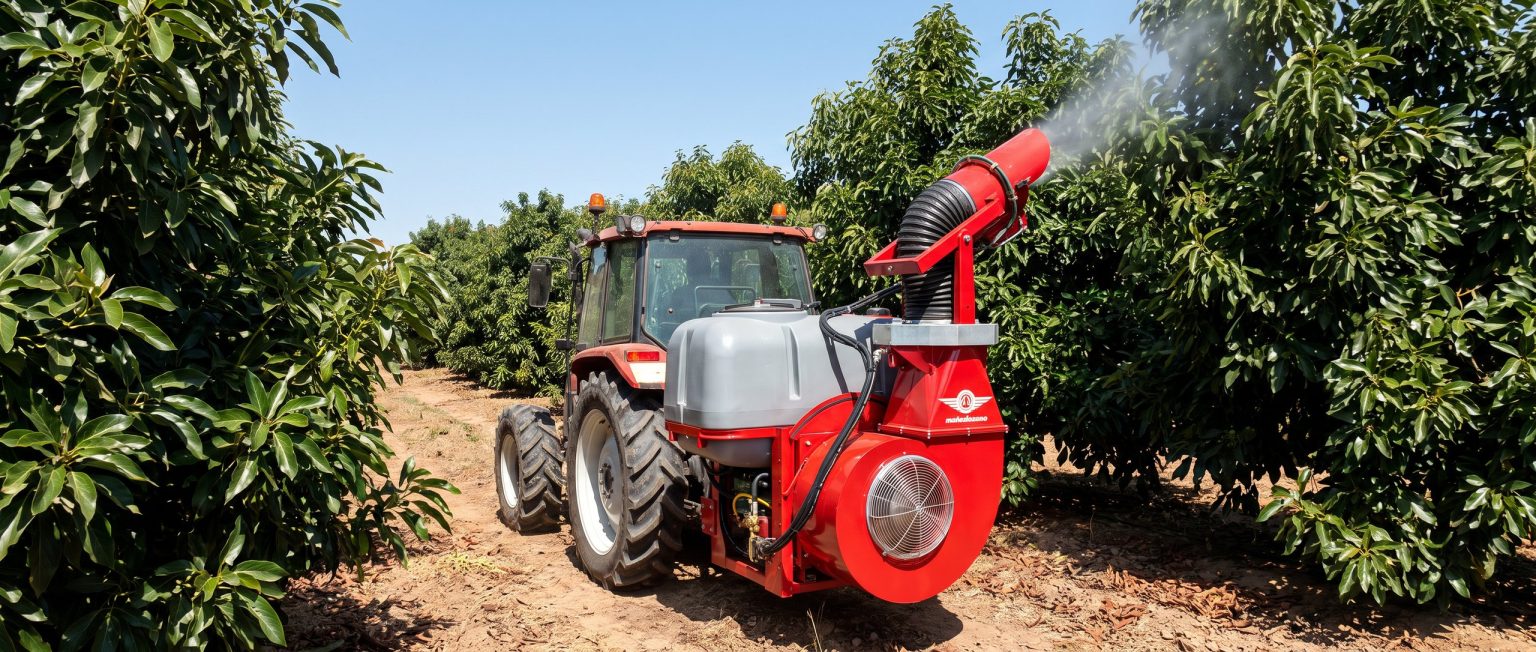

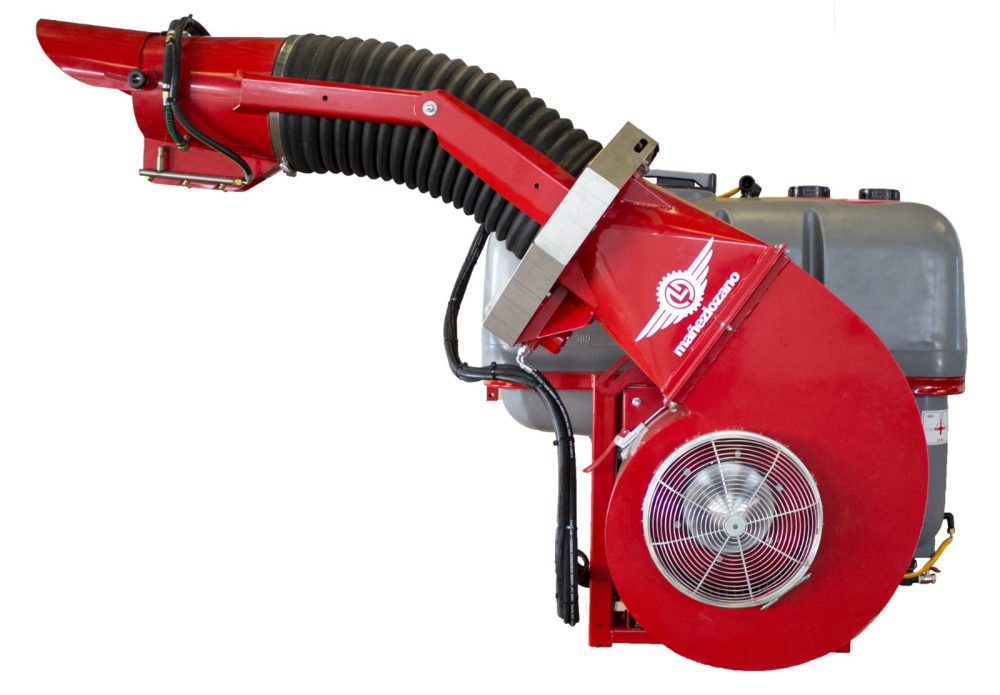

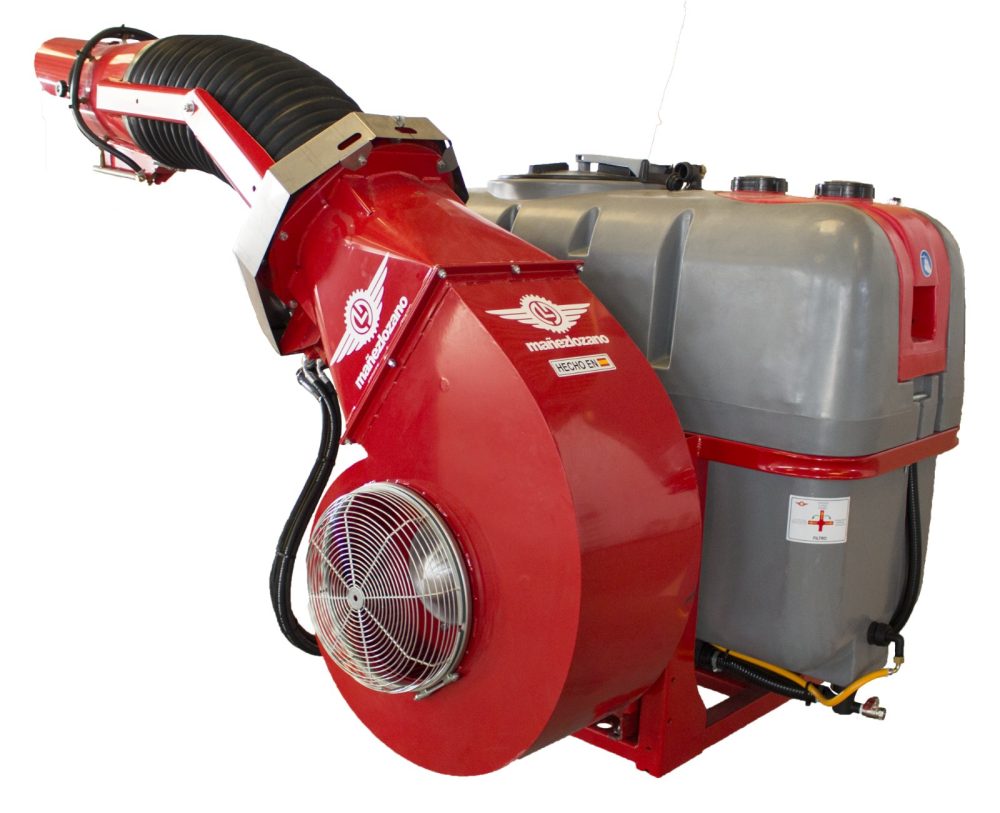

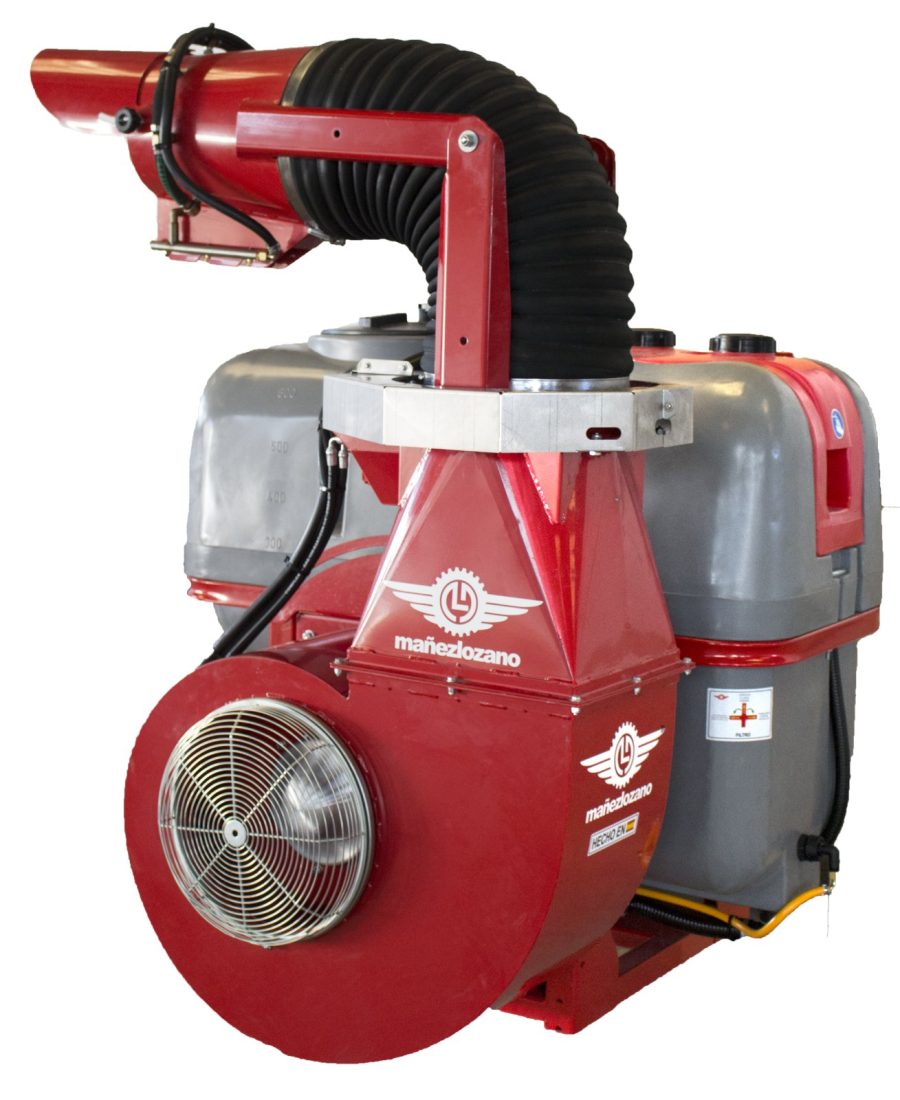

Mounted cannon Navarone

HP requirement: from 34 Cv.

Available width: from 145 to 153 cm.

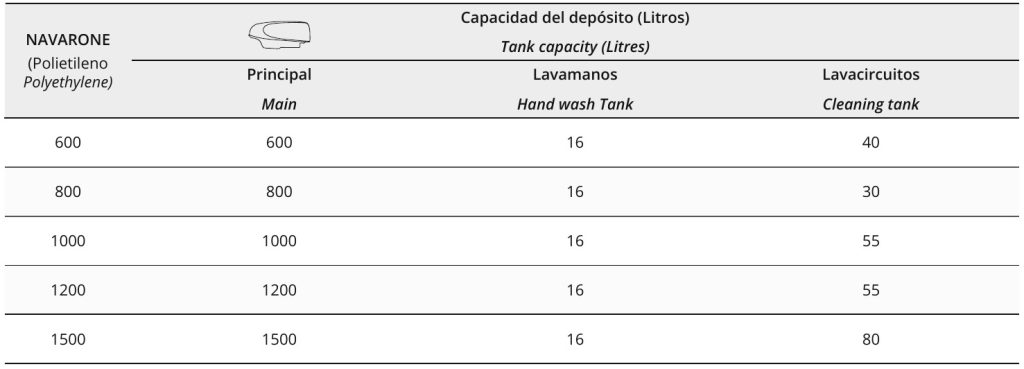

Tank Capacity: 600, 800 and 1000 litres

Walnut trees

nuez

Vegetables

hortalizas

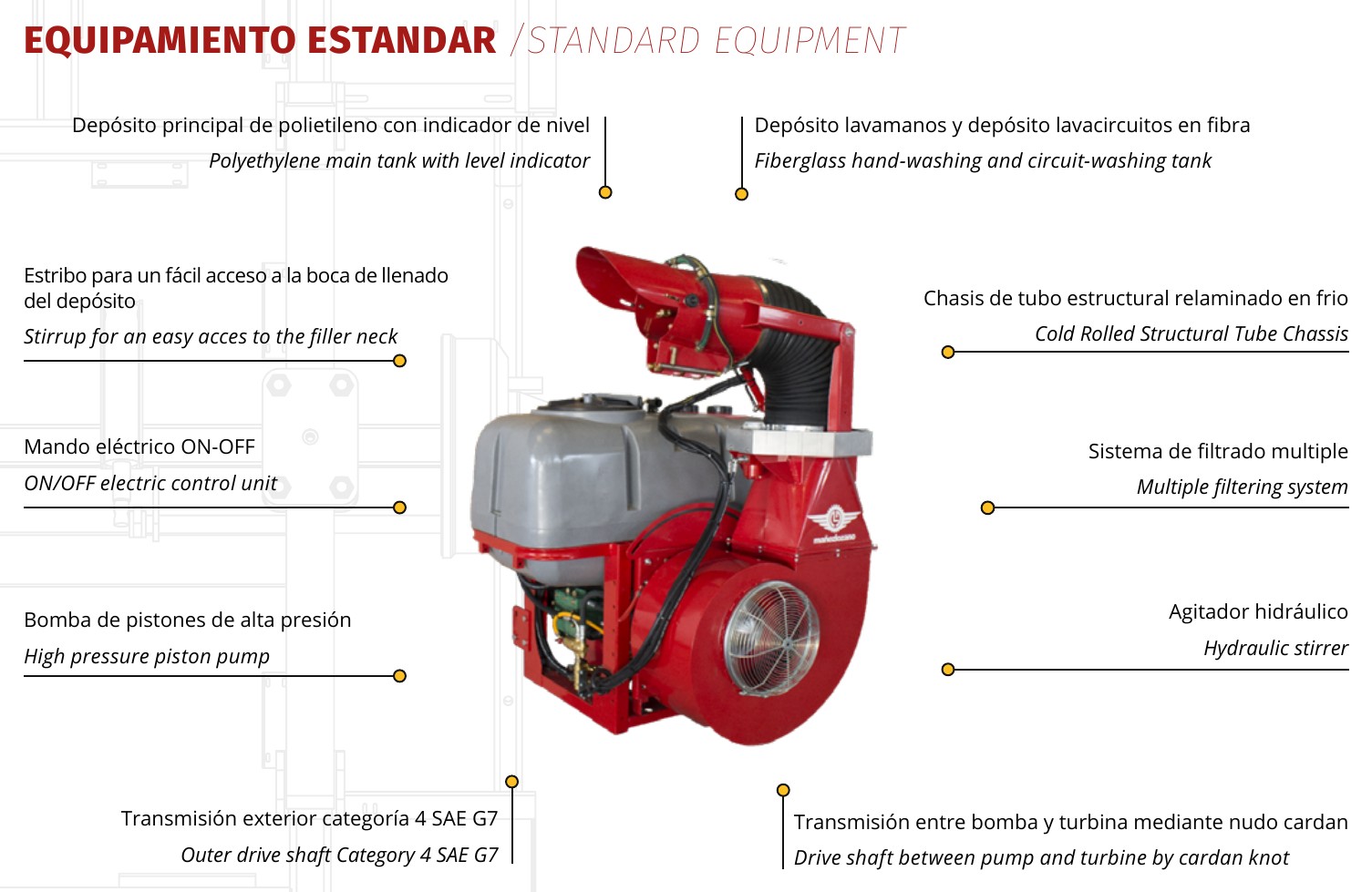

  • Double structural tube frame
  • Polyethylene main tank with level indicator
  • Polyethylene hand wash and system rinse tank
  • Multiple filtering system
  • Hydraulic stirrer
  • Mañez Lozano high pressure piston pump
  • Manual control command with pressure regulator and pressure gauge
  • Transmission from pump to turbine by cardan
  • Tractor PTO class 3 SAE G4

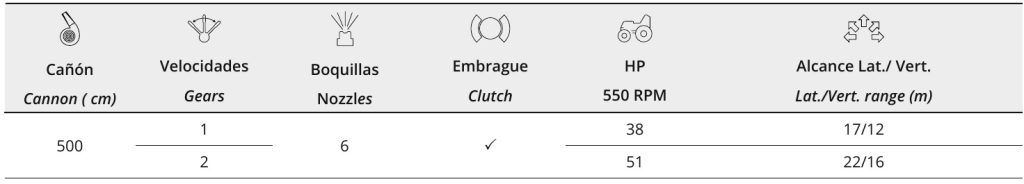

Technical specifications

  • Centrifugue wheel 500 fire painting
  • Two speeds and neutral gearbox transmission
  • Aluminium clutch linings
  • Double dripless nozzle with ceramic and cone spray tips

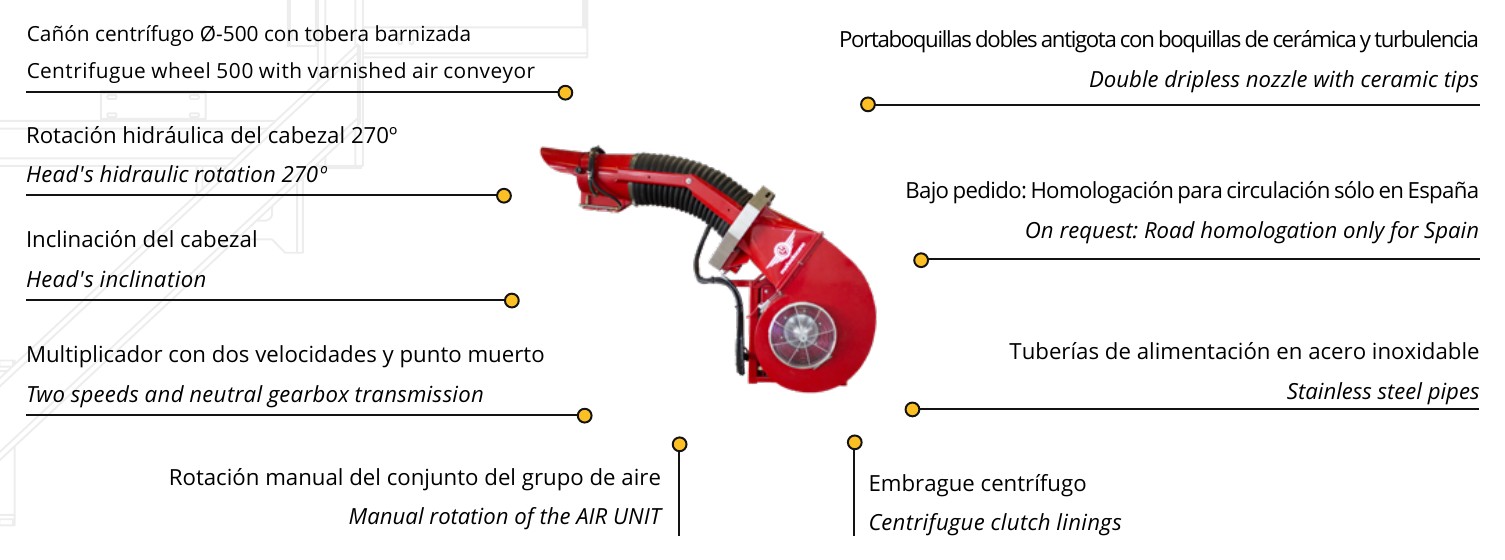

Air system characteristics

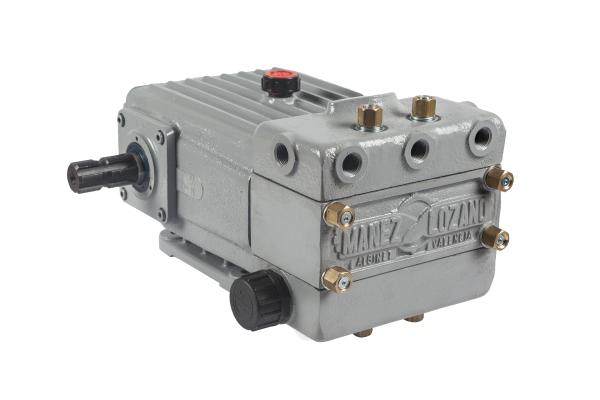

PUMP ESPECIAL DIRECTA ML-D

Pump specially designed for atomizers.

mando-M170-2

MANUAL CONTROL M-170

Manual control with a selector lever for selecting the sections you wish to apply treatment. You can also regulate the working pressure precisely and reliably by turning the handle even while operating.

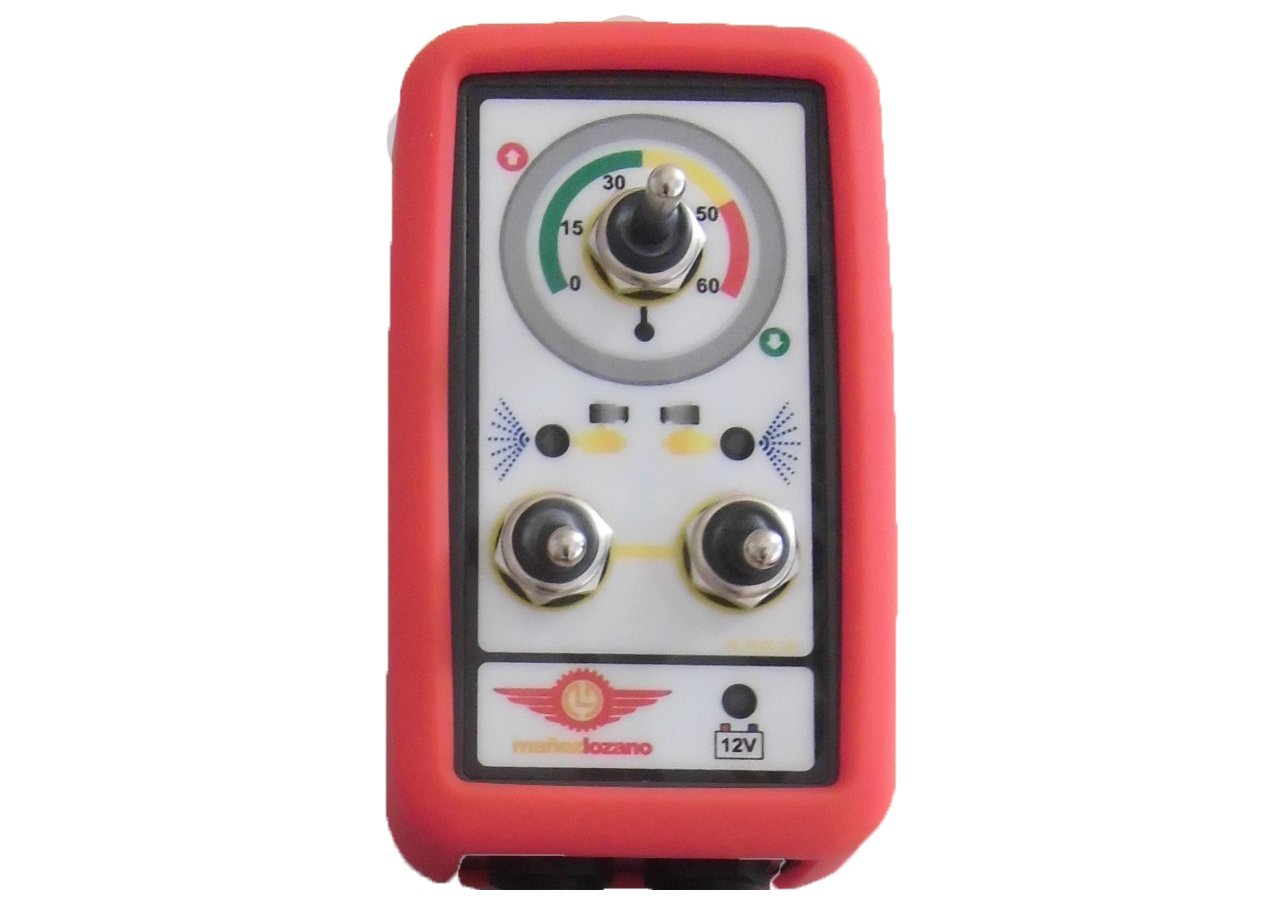

8138730 mando on off ROJO recortado

ELECTRIC CONTROL ON-OFF

Control with double switch to increase or decrease pressure (optional) and two switches to activate or deactivate the left and right solenoid valves.

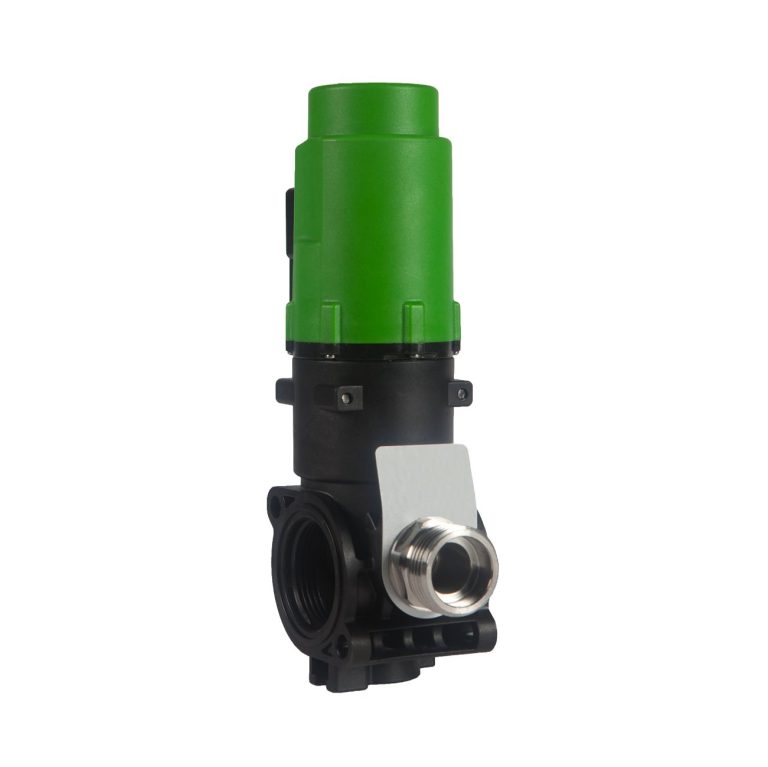

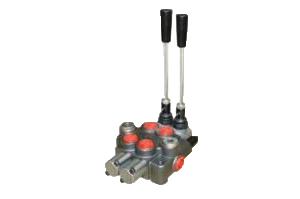

OPTIONAL EQUIPMENT
