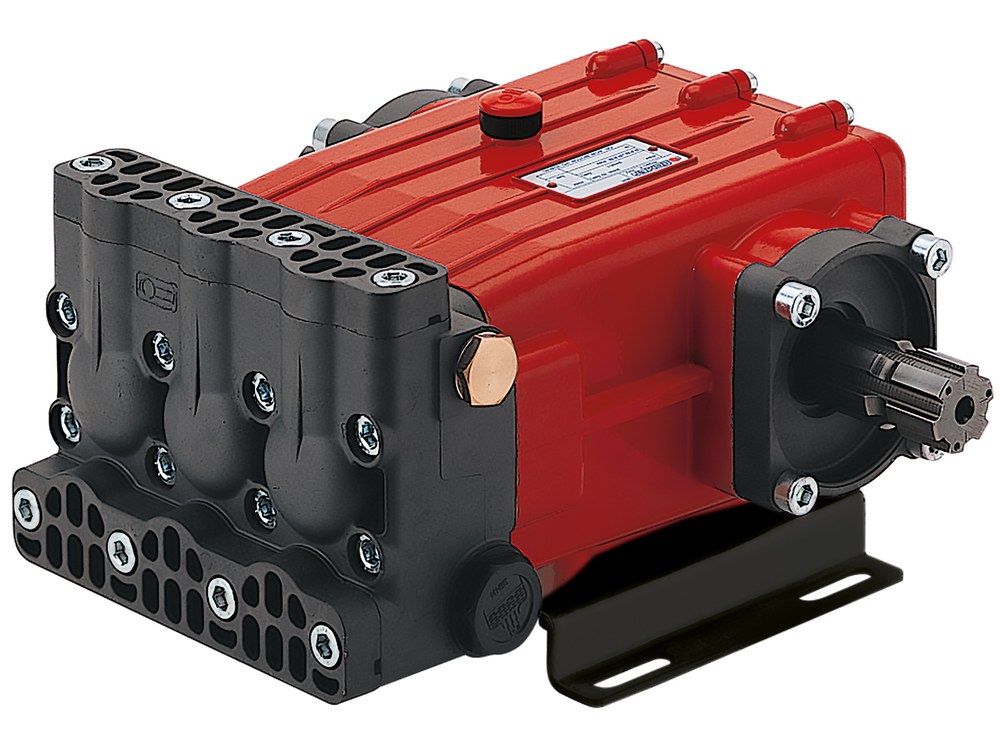

Direct-drive high-pressure piston pump, the lightest in the HPP series: 55 l/min at just 16 kg.
Mañez y Lozano manufactures its own piston pumps: all their components are machined in our facilities, ensuring a high-quality end product.
55 l/min at 540 rpm
50 bar
16 kg
HPP series
| Model | Pistons | Flow rate | Speed | Pressure | Weight | Width × length × height |
|---|---|---|---|---|---|---|
| ML-65 | 3 | 55 l/min | 540 rpm | 50 bar | 16 kg | 274 × 324 × 180 mm |
Features and technical data are for guidance only. The manufacturer reserves the right to make any modifications to the machine that it deems appropriate.
* Pumps are supplied with pressure regulator(s) and pressure gauge.
| Model | Pistons | Flow rate at 540 rpm | Weight | Transmission |
|---|---|---|---|---|
| ML-65 ◂ | 3 | 55 l/min | 16 kg | direct |
| ML-D | 3 | 110 l/min | 61 kg | direct |
| ML-A | 3 | 150 l/min | 85 kg | direct |
| ML-A1-EP | 3 | 135 l/min | 90 kg | with reduction gear |
| ML-A1D | 6 | 320 l/min | 110 kg | direct |
| ML-A1D-EP | 6 | 270 l/min | 125 kg | with reduction gear |
