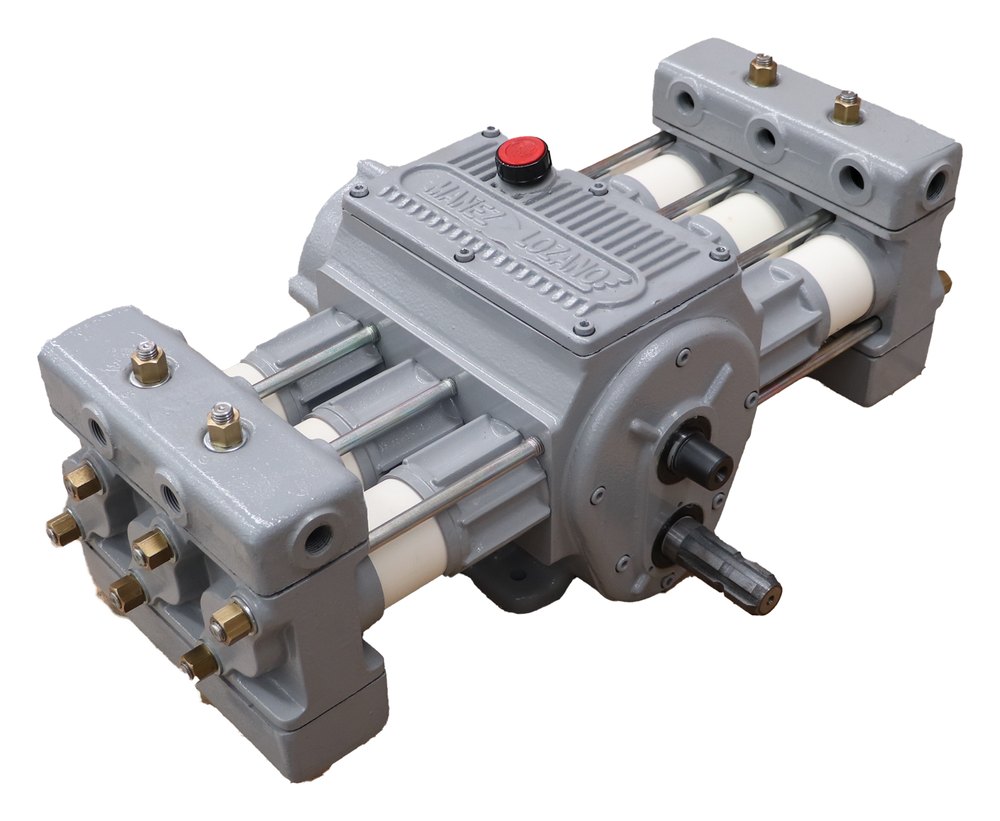

ML-A1D-EP double pump with reduction gear for sprayers

ML-A1D-EP piston pump

Six-piston double pump with reduction gear and through shaft: 270 l/min at 540 rpm.

Mañez y Lozano manufactures its own piston pumps: all their components are machined in our facilities, ensuring a high-quality end product.

It is fitted with a reduction shaft and a through shaft: the through shaft transmits the tractor PTO speed directly to the air unit, while the reduction gear lowers the pump crankshaft speed, reducing the power absorbed and, therefore, fuel consumption and pump wear.

Flow rate:

270 l/min at 540 rpm

Pressure:

50 bar

Weight:

125 kg

HPP series

ML-A1D-EP

GENERAL FEATURES

TECHNICAL SPECIFICATIONS

HPP SERIES

ACCESSORIES

GENERAL FEATURES

TECHNICAL SPECIFICATIONS

Model	Pistons	Flow rate	Speed	Pressure	Weight	Width × length × height
ML-A1D-EP	6	270 l/min	540 rpm	50 bar	125 kg	388 × 742 × 298 mm

Features and technical data are for guidance only. The manufacturer reserves the right to make any modifications to the machine that it deems appropriate.

* Pumps are supplied with pressure regulator(s) and pressure gauge.

HPP SERIES

Model	Pistons	Flow rate at 540 rpm	Weight	Transmission
ML-65	3	55 l/min	16 kg	direct
ML-D	3	110 l/min	61 kg	direct
ML-A	3	150 l/min	85 kg	direct
ML-A1-EP	3	135 l/min	90 kg	with reduction gear
ML-A1D	6	320 l/min	110 kg	direct
ML-A1D-EP ◂	6	270 l/min	125 kg	with reduction gear
