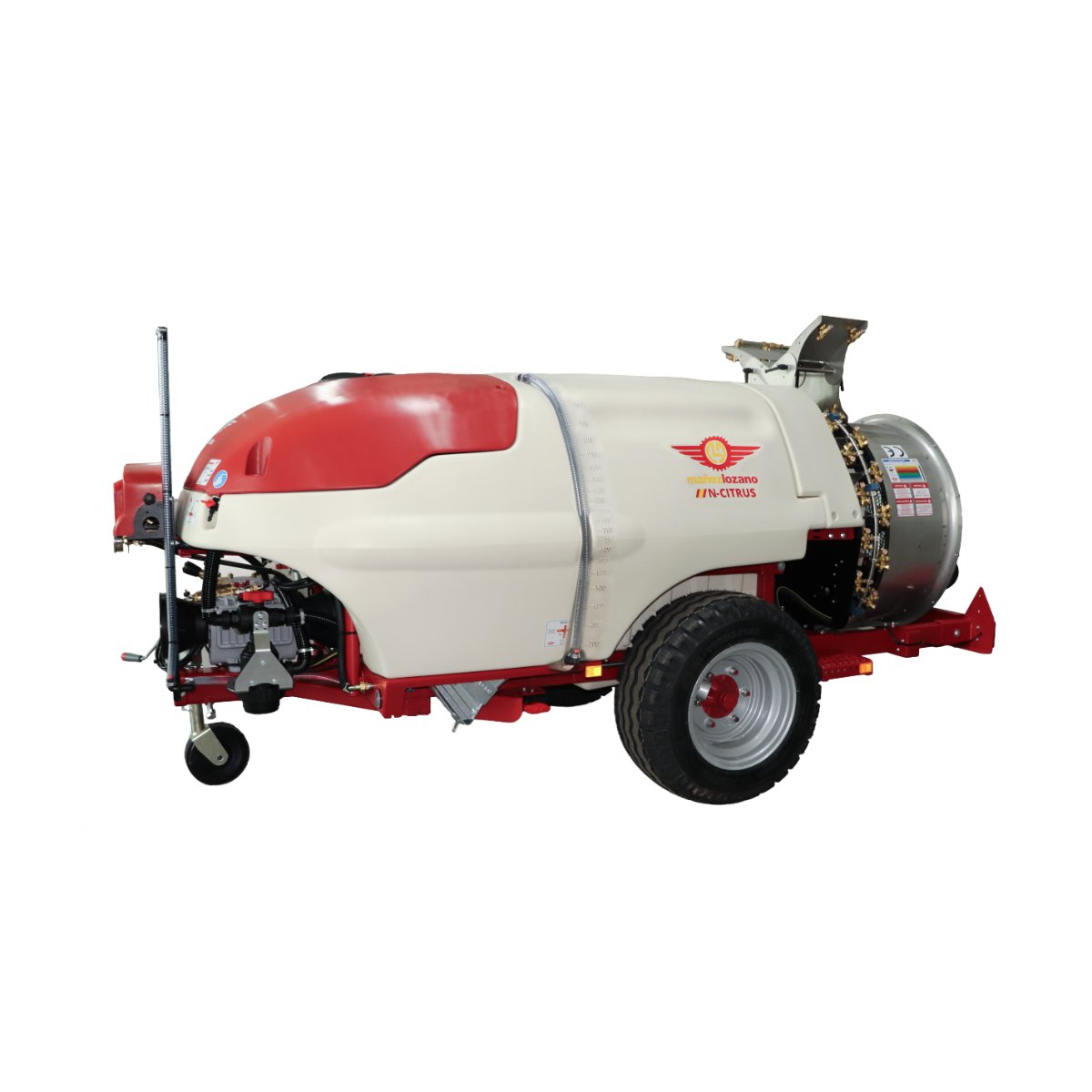

Mañez y Lozano Narrow Citrus Hot Lemon trailed sprayer

Narrow Series Trailed Sprayer
CITRUS HOT LEMON

Trailed sprayer with a double row of nozzles, triple nozzle holders and a triple air deflector, for crops with a dense canopy, such as citrus

Fruit trees

Citrus

download catalogue
Request more information

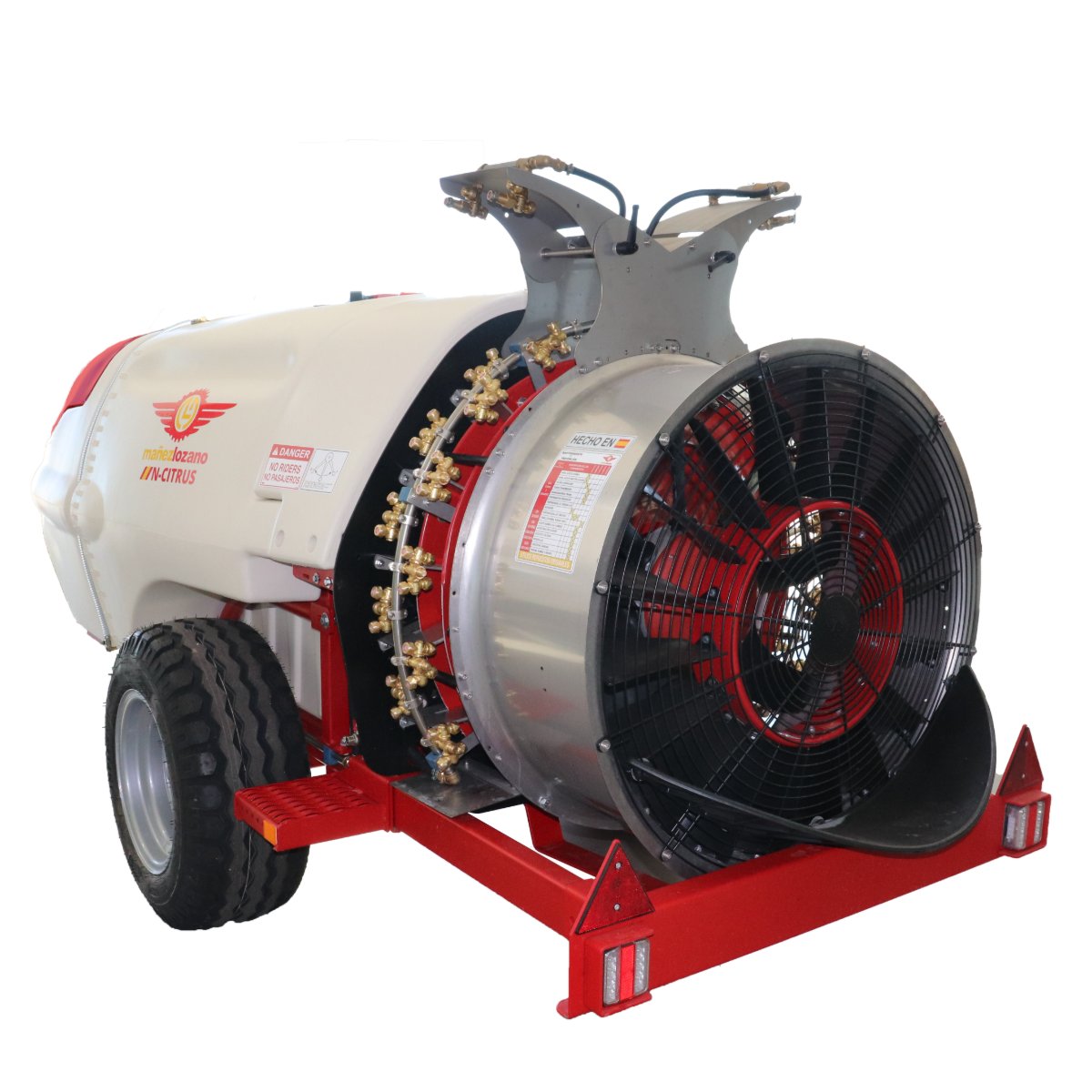

IMG_2386 HOT LEMON

Power requirements:

from 55 hp

Available width:

from 116 to 183 cm

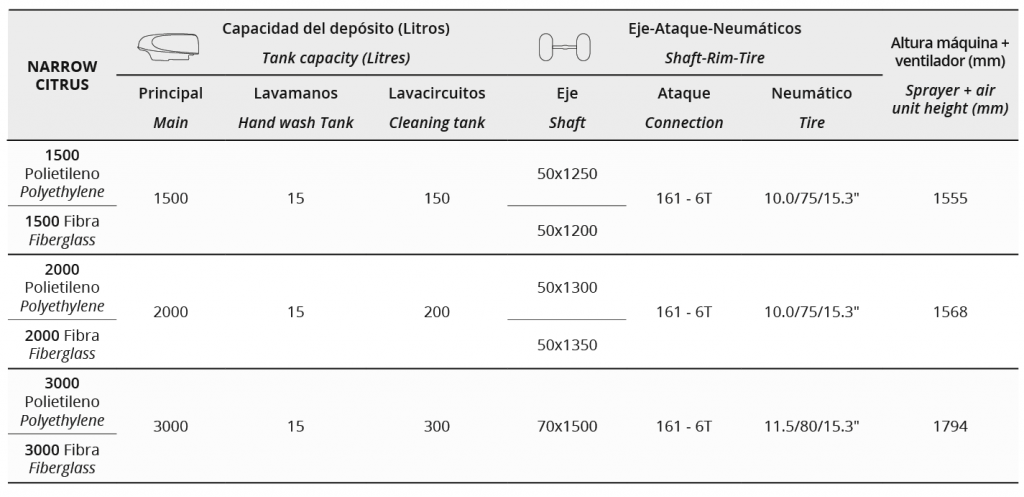

Tank capacity:

1,500, 2,000 and 3,000 litres

series

NARROW CITRUS HOT LEMON

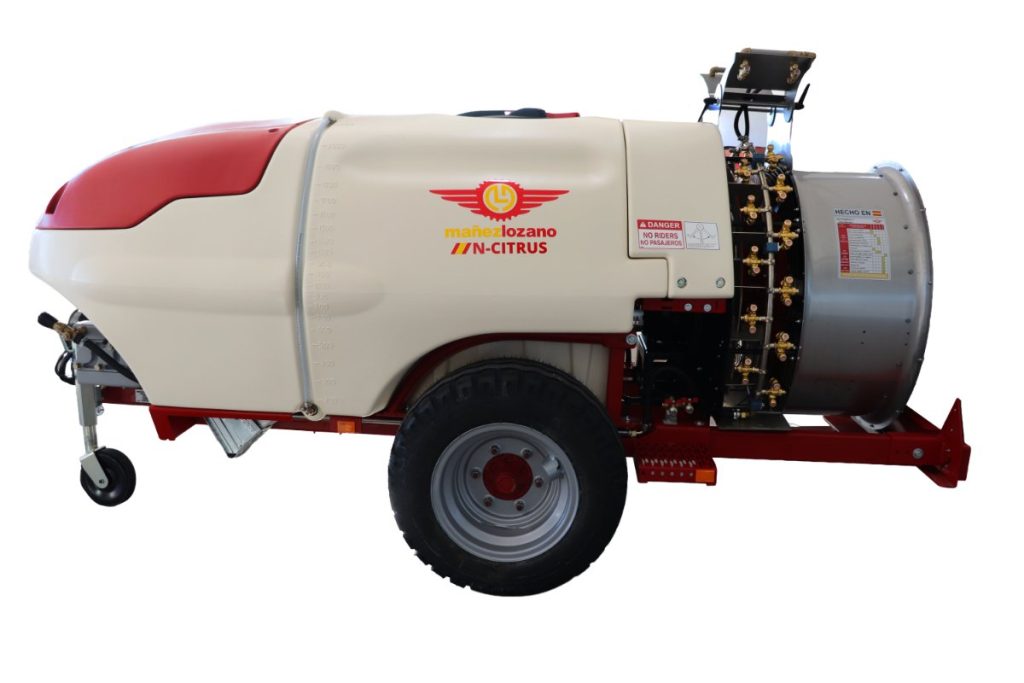

Narrow Citrus Hot Lemon trailed sprayer, side view

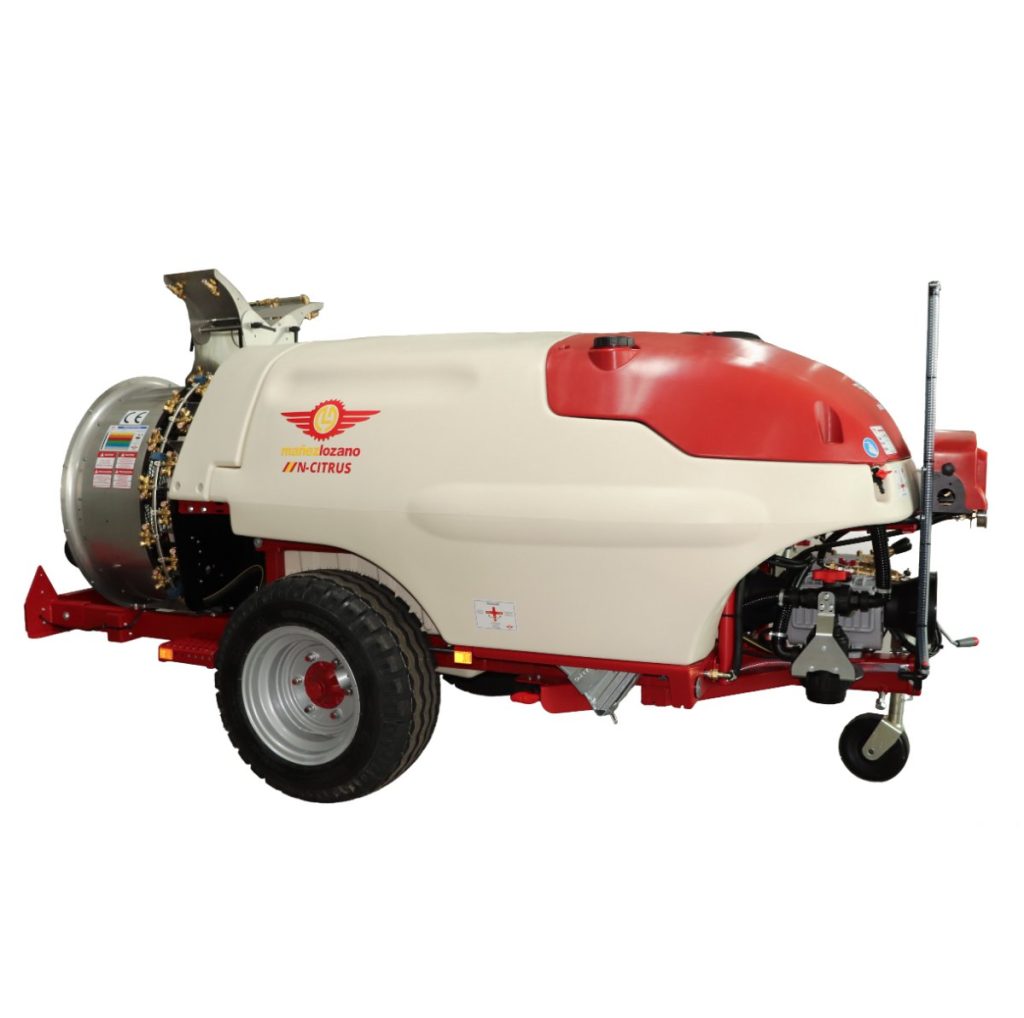

Narrow Citrus Hot Lemon sprayer in profile

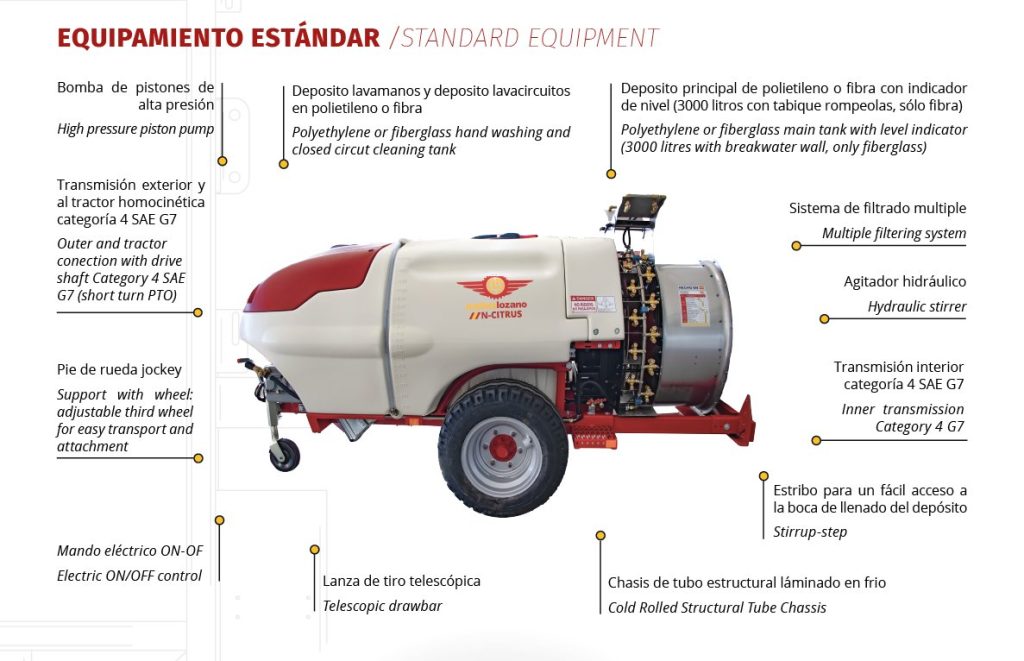

Standard equipment of the Narrow Citrus Hot Lemon sprayer

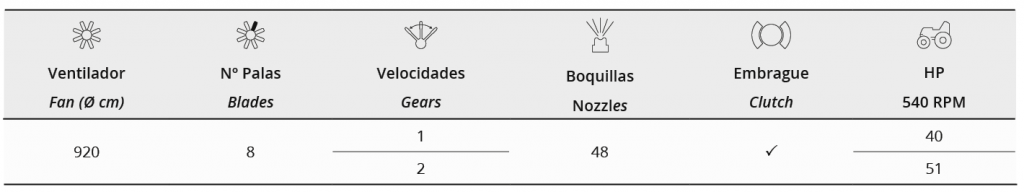

AIR
UNIT

CITRUS HOT LEMON

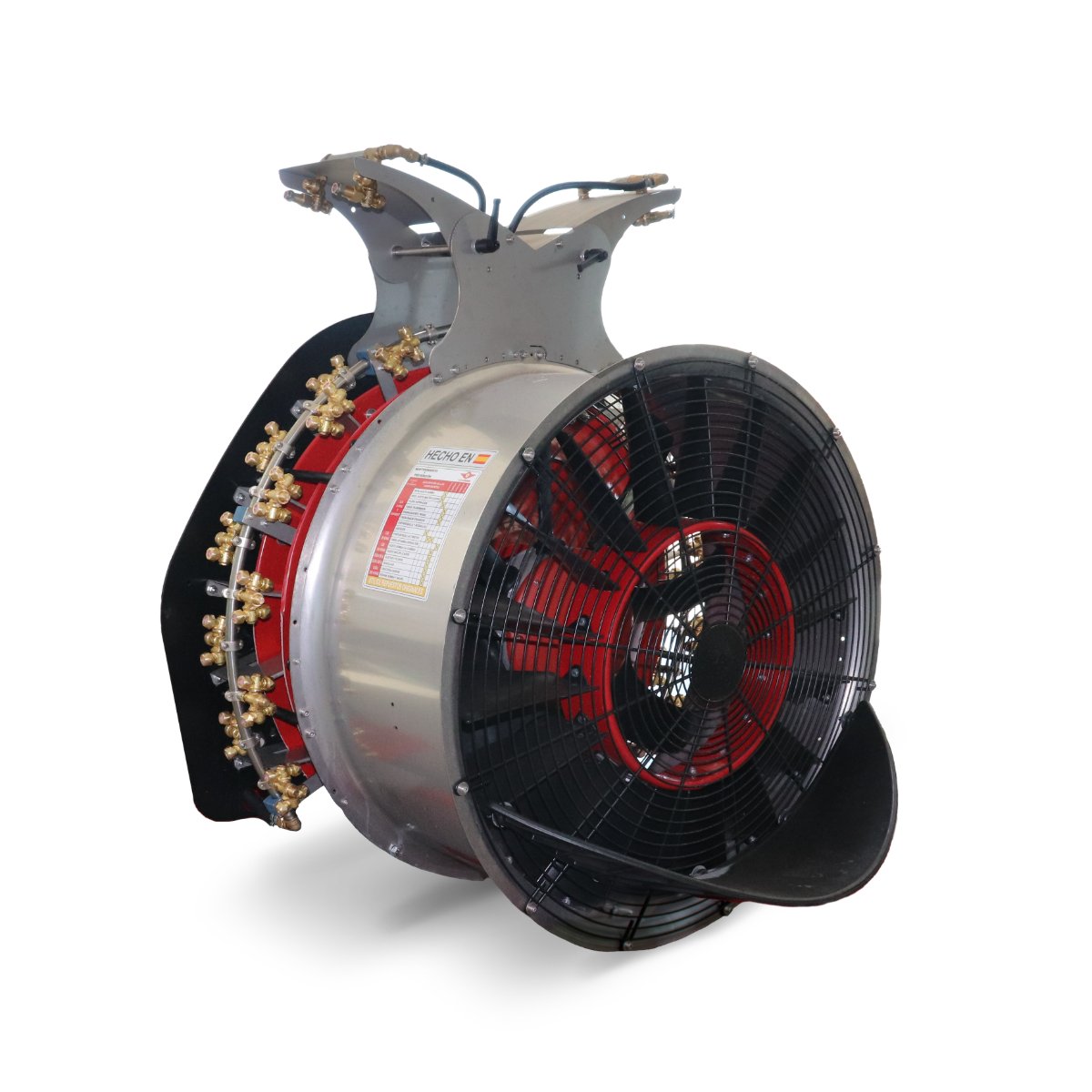

Narrow Citrus Hot Lemon fan with a double row of nozzles
Citrus Hot Lemon

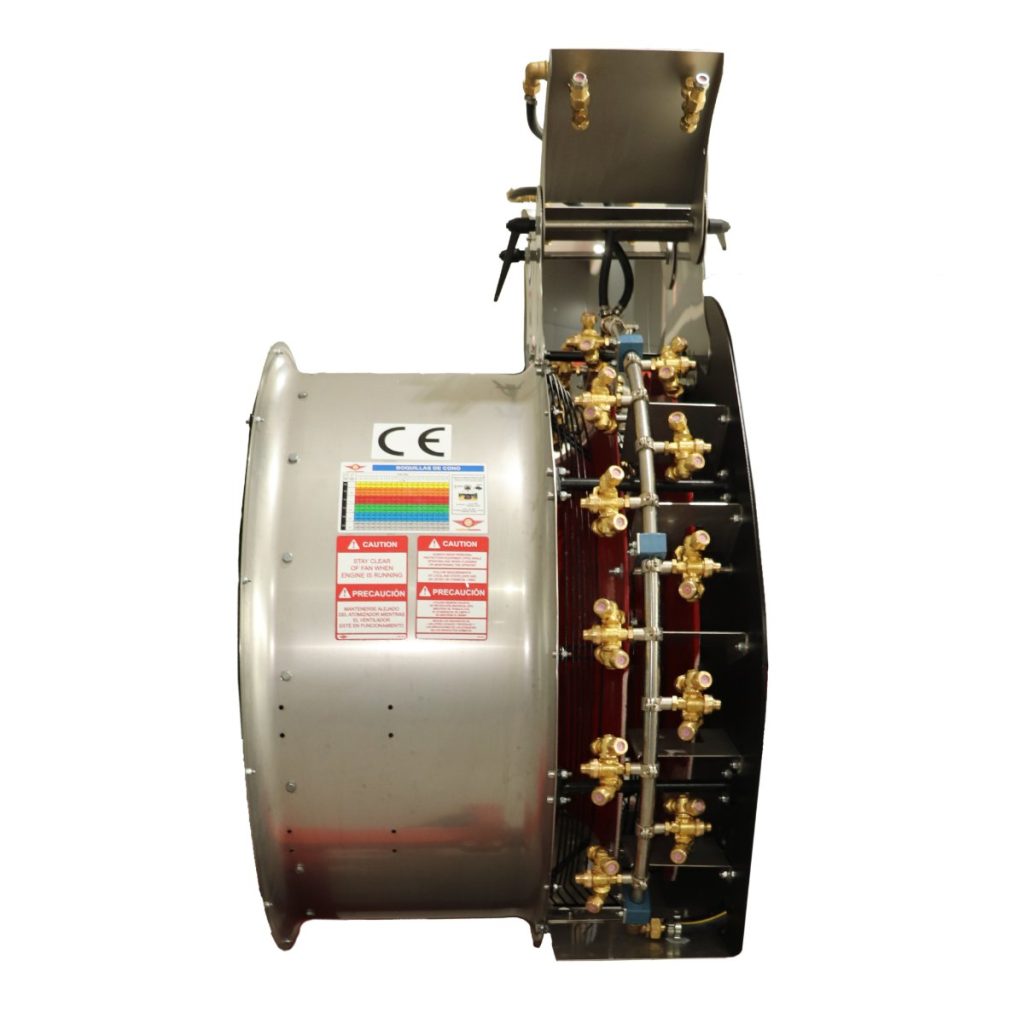

Triple nozzle holders of the Narrow Citrus Hot Lemon fan
Citrus Hot Lemon
Sprayer coverage: up to 3 m high and inter-row spacing of 5 m

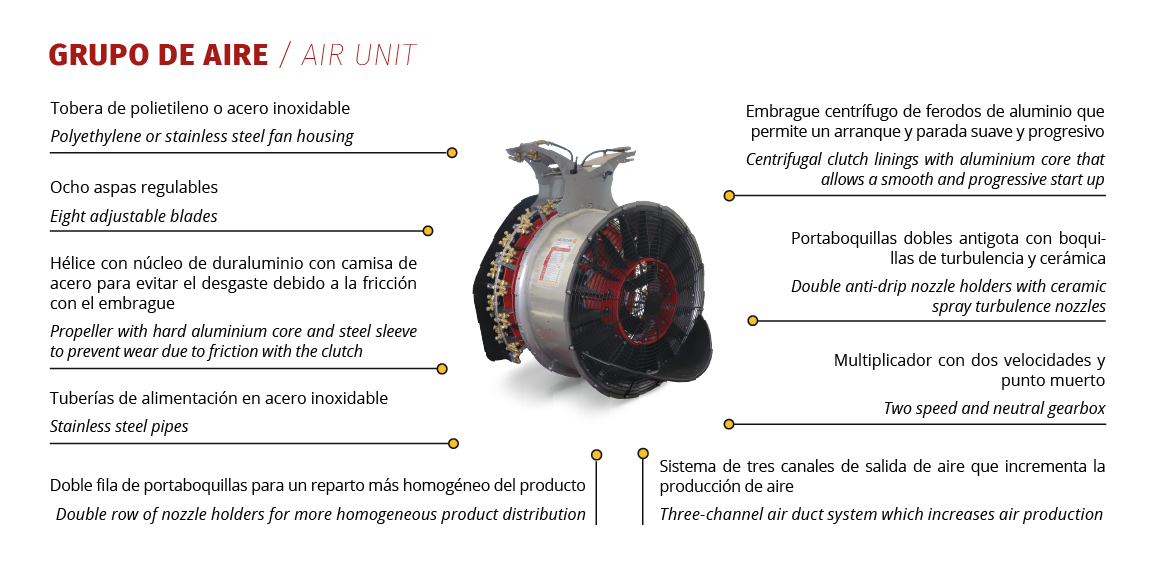

Narrow Citrus Hot Lemon air unit and its components

OPTIONAL EQUIPMENT

Articulated drawbar to tractor hitch
Articulated drawbar to tractor lower links
Leaf guard grille
Leaf guard flap
Three-point hitch
Lighting system and rear bumper
Rear box + lighting system
Hydraulic brakes
Product mixer
Electric pressure regulating valve kit
ON-OFF electric control unit kit, 2 sections, with flow meter
ON-OFF electric control unit kit, 4 sections, with flow meter
Tronic Volumetric control unit kit
Sistromatic control unit kit without flow meter
Sistronic 4.0 control unit kit
Low wheel 26"x12-12" on 10.80/12 - Wheel 26"x12-12" on 10.75/5
Wheel 340/55-16" on 10.75/5 - Wheel 11.5/80/15.3 on 10.75/15 - Wheel 400/60-15.5" on 10.75/15
Upper deflectors
Stainless flow meter
